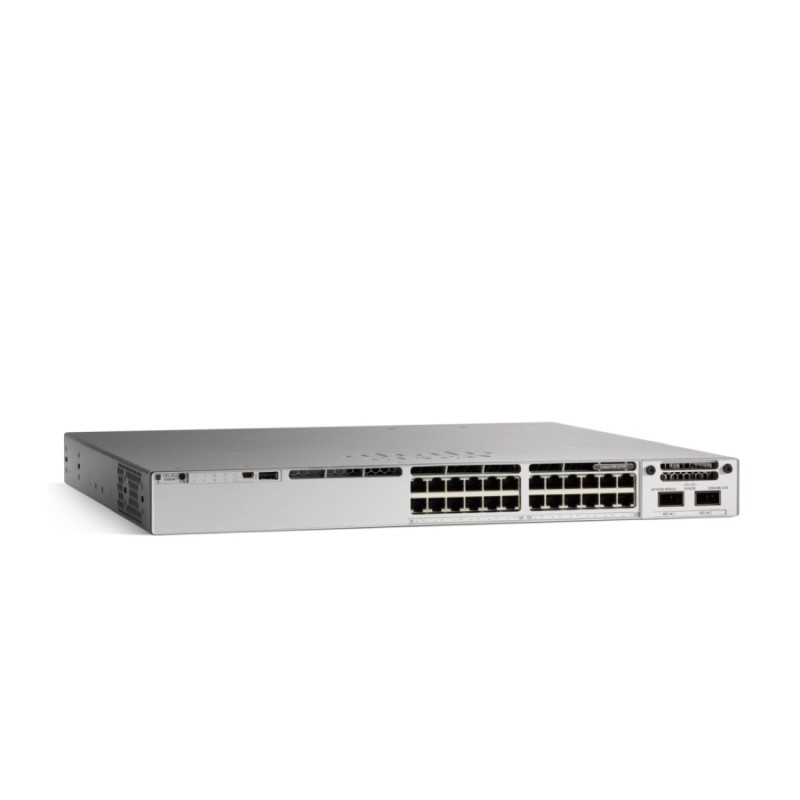

Суич CISCO Catalyst 9300 24-port 1G copper with fixed 4x1G SFP uplinks

Производител: Cisco
Модел: Catalyst 9300 24-port 1G copper with fixed 4x1G SFP uplinks
MPN: C9300L-24T-4G-E
Наличност: С Поръчка

0 мнения / Напишете мнение

3,713.67€

Комутатор, Cisco Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Essentials

Етикети: Суич CISCO Catalyst 9300 24-port 1G copper with fixed 4x1G SFP uplinks C9300L-24T-4G-E

Fans

Да

Routing

Advanced

VLAN (брой, стандарти)

VLAN IDs: 4094; IEEE 802.1Q VLAN

Капацитет за маршрутизиране/превключване, Gbps

128 Gbps; Switching capacity with stacking: 448 Gbps

Общ брой портове

Опция за монтаж

Rackmount

Основни портове, тип

10/100/1000Base-T

Памет (Flash, RAM)

Flash memory: 16 GB; 8 GB DRAM

Пропускателна способност, Mpps

95.23 Mpps; Forwarding rate with stacking: 333.33 Mpps

Суич, тип

Fixed Port

Модел

Catalyst 9300 24-port 1G copper with fixed 4x1G SFP uplinks

Размери

44.5 x 44.9 x 4.4

Гаранция

99 месеца

Продуктов №

C9300L-24T-4G-E

Power Over Ethernet (PoE)

Uplink портове

4xSFP

Свободни (10GB) слотове

Управление

Yes

Stackable

Optional module

Захранване

Redundant

MAC адреси

32000 MAC address

QoS

Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port

L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x

L3 мрежови стандарти

IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]

IPv6 functionality

IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance; IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting

Сигурност

Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems

Друго

Задължителен е минимум 3-годишен лиценз DNA Essentials.
