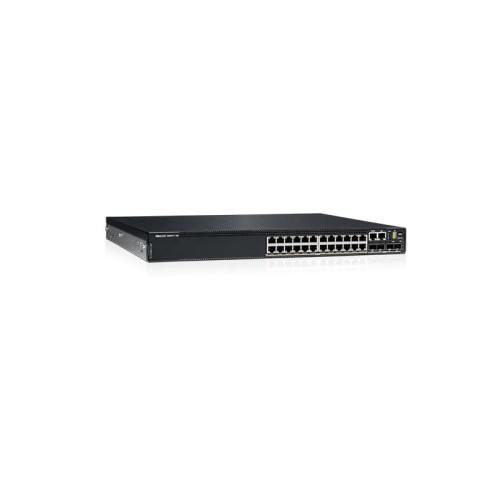

Суич DELL EMC PowerSwitch N3224PX-ON 24x10M/100M/1G/ 2.5G/5G/10G BASE-T RJ45 with 802.3bt Type-4 (90W) PoE

Производител: Dell
Модел: EMC PowerSwitch N3224PX-ON 24x10M/100M/1G/ 2.5G/5G/10G BASE-T RJ
MPN: DNN3224PX
Наличност: С Поръчка

7,908.00€

Комутатор, Dell EMC PowerSwitch N3224PX-ON, 24x10M/100M/1G/ 2.5G/5G/10G BASE-T RJ45 with 802.3bt Type-4 (90W) PoE, 4x 25G SFP28 ports, 2x 100G QSFP28, 1x1600W AC PSU, 1 EPS (optional), IO/PS

Етикети: Суич DELL EMC PowerSwitch N3224PX-ON 24x10M/100M/1G/ 2.5G/5G/10G BASE-T RJ45 with 802.3bt Type-4 (90W) PoE DNN3224PX

Fans

Да

Routing

Advanced

VLAN (брой, стандарти)

Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24

Капацитет за маршрутизиране/превключване, Gbps

1080 Gbps

Общ брой портове

Опция за монтаж

Rackmount

Основни портове, тип

10GBase-T

Памет (Flash, RAM)

4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD

Пропускателна способност, Mpps

1500 Mpps

Суич, тип

Fixed Port

Модел

EMC PowerSwitch N3224PX-ON 24x10M/100M/1G/ 2.5G/5G/10G BASE-T RJ45 with 802.3bt Type-4 (90W) PoE

Размери

434 x 400 x 43.5 mm

Гаранция

99 месеца

Продуктов №

DNN3224PX

Power Over Ethernet (PoE)

PoE

Uplink портове

4x 25G SFP

Свободни (10GB) слотове

Управление

Web

Stackable

Yes

Захранване

Redundant

MAC адреси

32K

QoS

DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM

L2 мрежови стандарти

802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt

L3 мрежови стандарти

RIP, OSPF, VRRP, MIB

IPv6 functionality

Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3

Сигурност

RADIUS, TACACS+, 802.1x

Друго

1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU
